Bartec Explosion Proof

In stock

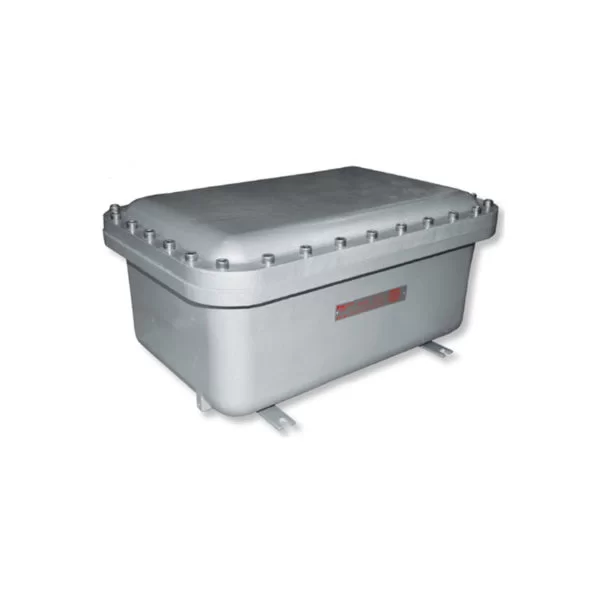

EJB-UL INX Stainless Steel Enclosures

SKU: EJB-2 Categories: Bartec, Explosion Proof

Ex db IIB+H2 Zone 1/2-21/22 / Atex / IECEx / Inmetro / EAC / RMRS / Rina / NEC 505

We at Team Technology provide an in-house Design, Assembly & Remote Testing.

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)

Classification: Group II – Category 2G 2D

Mechanical characteristics

Body/cover – marine grade copper free aluminium light alloy / stainless steel AISI 316L

Screws – stainless steel – internal / external

Internal mounting plate – hot dip galvanized steel / aluminium

Fixing – galvanized steel stirrups th.10mm

Gaskets – O-RING silicon rubber on cover (option on request)

On Request Accessories :

Specification
Execution:	II 2 G) Ex db IIB+H2 T6…T3 ( II 2 G) Ex db [ia/ib] IIB+H2 T6…T3 ( II 2 D) Ex tb IIIC T85°C…T150°C
Brand/ Manufacturer	Bartec Feam
Compliance:	EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-11; EN/IEC 60079-31
EC Types:	INERIS 13 ATEX 0022X
Protection Degree:	IP66
Ambient Temperature:	-60°C to +60°C
Other Certification:	Component: INERIS 13 ATEX 9019U IECEx: IECEx INE 13_0070X INMETRO: CEPEL 12.2139 EAC: TC RU C-IT.ГБ08.В.01499 RINA: ELE18111CS_012 RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315 NEC 505: UL 20141204-E302348 – Type rating NEMA 1, 12, 4 and 4X
Datasheet	Download >
